Urinal Partition HPL

Urinal partitions and modesty panels are a must-have in the men’s restroom. They provide privacy and cleanliness. Made from high-quality HPL boards, the urinal partitions are antifungal, antibacterial, and are easy to install and clean. Partitions of any size and shape can be custom designed and executed. Being modular in built, they can be easily removed and reused without breakage. The partition is anchored to the wall using sturdy L-shaped SS brackets. Rich colours and smart shapes of the urinal partitions complement the cubicles and wall tiles to change the aesthetic of the men’s washroom. Unlike the conventional stone and ceramic partitions, it is reusable, easy to clean and require less space and effort, making it a preferred choice of architects is modern men’s restrooms.

Specifications

Specifications

  • Boards: 12/18mm thick HPL
  • Hardware: SS 304 / Nylon Polyamide “L” bracket
  • Std Size: 400mm(W) x 900mm(H) / 450mm(W) x 1000(H) mm
  • Bottom Gap: 300 – 450mm
  • Customised size, height & shapes available as per the requirement
  • Colour: Solid and wooden (as per T-Line shade card)
  • Usage: Commercial offices, IT Parks, Malls, Multiplex, Schools, Universities, Airports, Hospitals, Sports complexes, Factories, Amusement Parks, Public Areas, Supermarkets and Retail Spaces.
Specification Image

Downloads

Hardware

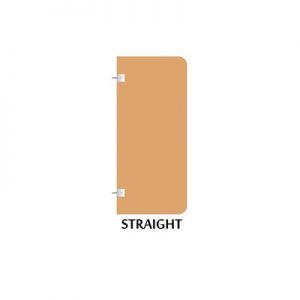

Shapes

Engineering Drawing
